Overview

Mediconz International offers world class Laminar flow for Operating Theatre, One of the main objectives of system is to dilute the bacteria generated by the operating team and patient in the theatre and to create an Air flow pattern that carries out contaminated air away from the operating table. Air & Light integrated Plenum is supplied as an integral parts of Operating Theatre Department Design and Solution.

Design
Plenum Box made of 60601 T5 Alumunium or Steel
The Air & Light diffussers consist of two layers of monofilament precision woven polyster of uniform porosity with an open area of sufficient resistance to create laminar flow from diffusser face.
Diffusing air into the theatres uniformly over the total area, the Mediconz range of ventilated ceiling provide the sterlity and cleanliness required for modern operating theater environment.
Integral lighting provides an illumination level in excess of 15000 Lux in Operating area and 10000 lux other electronic stepless dimming down to 5% without flicker

Mediconz International's
world class Services with Superior Product range of standards, Quality & Design. Offers
Turnkey OT Solution

Product Detail.

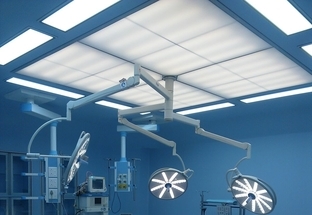

Air and Light Integrated Plenum Laminar flow
HEPA filters having efficiency
99.97% down to 0.3 microns
HEPA filters are factory tested
Incased in Alumunium exturded framework with Micro-fiber glass imported media.

Product Range and Option
Air and light Plenum
MINI PLEAT HEPA Plenum
Of various sizes and capacity

Product standard
Mediconz Air and Light Integrated Plenum confirms to Class 100.
Certified Performance to DIN 4799 and ISO 14644

Product Services & Assurance
Validation services for Particle count, DOP Test , Number of Air changes per hour etc.to meet Operational Standards and Periodic Maintenance.
